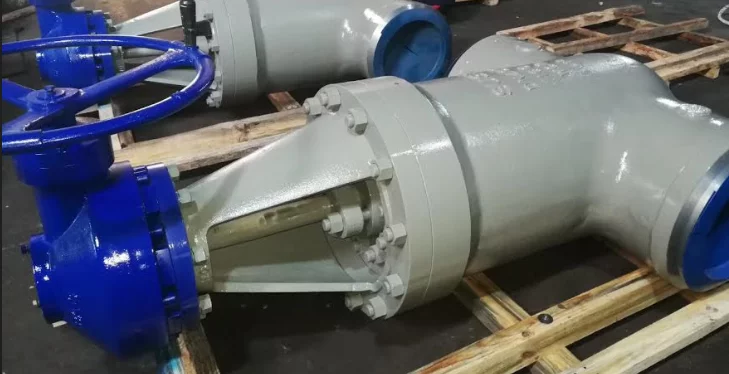

Pressure Seal Gate Valve
Body Material: A105, F304, F316, F304L, F316L, F51, F53, F11, F22, LCB
Bonnet: A105, F304, F316, F304L, F316L, F51, F53, F11, F22, LCB
Yoke: A105, F304, F316, F304L, F316L, F51, F53, F11, F22, LCB
Wedge: A105, F304, F316, F304L, F316L, F51, F53, F11, F22, LCB
Stem: F6a, F304, F316, F3304L, F316L
Gland: F6a, F304, F316, F3304L, F316L
Seat: F6a+Stellite, SS304, SS304+Stellite, SS304, SS316, SS304L, SS316L
Seat Ring: F6a+Stellite, SS304, SS304+Stellite, SS304, SS316, SS304L, SS316L
Packing: Graphite, PTFE
Gasket: SS304+ Graphite, SS316+Graphite
Nominal Diameter: DN50 to DN400
Nominal Pressure: Class1500 to Class2500
Design and Manufacture: API602, BS5352, ASME B16.34
Socketweld Dimension: ANSI B16.11, JIS B2306
Buttweld Dimension: ASME B16.25, DIN 3239, EN12627
Screwed Dimension: ANSI B1.20.1
End to End Dimensions: ANSI B16.5, EN1092, DIN2543, DIN2547
Face to Face Dimensions: ANSI B16.10, DIN3202, EN558-1, EN12982, ISO 5752
Inspection and Test: API598, DIN3230, EN12266, ISO 5208
End Connections: RF, RTJ, BW, SW, NPT
Operation: Handwheel Operated, Electric Operated
Dimensions                                              Unit: mm
Class1500
| DN | d | L | d1 | d2 | D | b | n-Ñ„d | H | W |
| 50 | 47 | 368 | 92 | 165 | 216 | 38.5 | 8-Ñ„26 | 510 | 280 |
| 65 | 57 | 419 | 105 | 190.5 | 244 | 41.5 | 8-Ñ„29 | 560 | 300 |
| 80 | 70 | 470 | 127 | 203.2 | 267 | 48 | 8-Ñ„32 | 620 | 350 |
| 100 | 92 | 546 | 157 | 241.3 | 311 | 54 | 8-Ñ„35 | 728 | 400 |
| 125 | 111 | 673 | 186 | 292.1 | 375 | 73.5 | 8-Ñ„42 | 870 | 450 |
| 150 | 136 | 705 | 216 | 317.5 | 394 | 83 | 12-Ñ„39 | 1000 | 500 |
| 200 | 178 | 831 | 270 | 393.7 | 483 | 92.9 | 12-Ñ„45 | 1130 | 750 |
| 250 | 222 | 991 | 324 | 482.6 | 585 | 108 | 12-Ñ„51 | 1360 | 900 |
| 300 | 263 | 1130 | 381 | 571.5 | 675 | 124 | 16-ф54 | – | – |
| 350 | 289 | 1257 | 413 | 635 | 750 | 133.5 | 16-ф61 | – | – |
| 400 | 330 | 1382 | 470 | 704.8 | 825 | 146.5 | 16-ф67 | – | – |
