Monel Top Entry Ball Valve
Body: Monel
Ball: Monel
End Cap: Monel
Seat: PTFE, RPTFE, PPL
Thrust Washer: PTFE, RPTFE, PPL
Stem Packing: PTFE, RPTFE, PPL
Gland Bush: SS304
Nominal Size: 6″ to 24″
Nominal Pressure: Class150 to Class2500
End Type: Flanged
Operation: Handwheel, Electric Actuated, Pneumatic Actuated
Design and Manufacture: API 6D
Face to Face Dimensions: ANSI B16.10
Flange end Dimension :ANSI B16.5
Butt Welded Dimensions: ANSI B16.25
Inspection and Test: API598

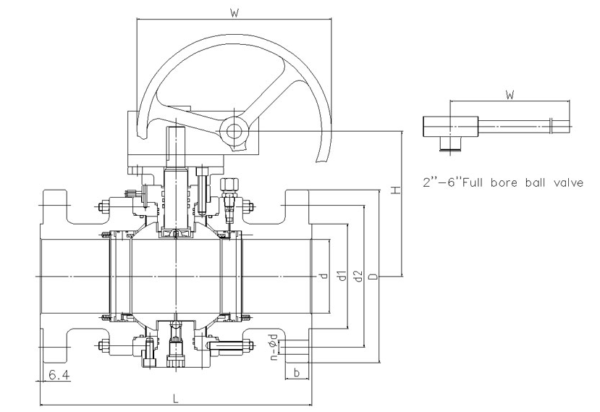

Dimensions
| NPS | in | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
| d | mm | 152 | 203 | 254 | 305 | 337 | 387 | 432 | 483 | 584 |
| L(RF) | mm | 403 | 502 | 568 | 648 | 762 | 838 | 914 | 991 | 1143 |
| d1 | mm | 216 | 270 | 324 | 381 | 413 | 470 | 533 | 584 | 692 |
| d2 | mm | 270 | 330 | 387.5 | 451 | 514.5 | 571.5 | 628.5 | 686 | 813 |
| D | mm | 318 | 381 | 445 | 521 | 584 | 648 | 711 | 775 | 914 |
| b | mm | 37 | 42 | 48 | 51 | 54 | 58 | 61 | 64 | 70 |
| n-Фd | mm | 12-22 | 12-25 | 16-29 | 16-32 | 20-32 | 20-35 | 24-35 | 24-35 | 24-41 |
| H | mm | 330 | 448 | 505 | 556 | 620 | 700 | 750 | 805 | 1110 |
| W | mm | 1000 | 300 | 350 | 400 | 500 | 500 | 500 | 500 | 500 |
